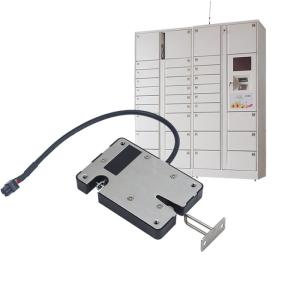

Stainless Steel 12V 24V 1.2A Electromagnetic Cabinet Lock
Product parameters:
| Model | KR-S99S |
| Size | 98.9*67.5*13.8 mm |
| Name | Electro Magnetic Cabinet Door Lock |
| The material of the lock body | 430 Stainless steel+PA+GF |
| The material of the lock bolt | Zinc alloy nickel plating |
| Working voltage | DC8V~DC24V |
| Working current | 2.4A/1.2A |
| Maximum power | 28W |
| Response time | Less than 20ms |
| Working temperature | -20℃ ~ +60℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Door weight | 0.5KG~10KG |
| Test | Salt spray testing 48hours |
| Usage | locker; express cabinet; vending machine; gym lockers |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Main Features:
1. Electromagnet is drove, support 12V & 24V.
2. Lock hook detection function.
3. 430 stainless steel shell is more durable, anti-force performance as 300kgs.
4. All electronic parts are protected in the sealed ABS box. IP rating is IP65. Can be waterproof.
5. Built-in push block helps push the door, thrust can be adjusted.
6. With mechanical emergency lever, can be unlocked manually in the event of power failure .
7. AWG24 wires with PVC protecting tube.
8. Push door detection function.
9. Customizing terminals and wires is available.
Product Details
Product Applications
Our products KR-S99S electro magnetic cabinet lock are used in courier lockers, fresh lockers, gym cabinets, storage cabinets, etc.
Different Lock Hook Options
| Model | Base | Thickness | Height | Weight |
| A | Flat | 3.0mm | 30mm | 11.0g |
| B | Flat | 3.0mm | 25mm | 10.5g |
| C | Arch | 3.0mm | 26.5mm | 10.8g |
| D | Arch | 3.5mm | 26.5mm | 11.8g |
| E | Arch | 3.0mm | 31.5mm | 11.4g |
| F | Arch | 3.0mm | 26.5mm | 10.5g |
| G | Arch | 3.5mm | 30mm | 11.0g |
